How to wall mount Samsung ua32c6900 led tv?

fauzan_22 · Jun 3, 2014

Hi,recently my cats broke my tv's stand thankfully the tv itself seems to appear fine but since the tv stand is pretty badly broken I will have to use a wall mount that was provided by Samsung.
But I can't find any documentation which explains how to set up the wall mount neither can I find any videos for my particular model so if anyone can provide me with a set of intructions as how to set up the wall mount on the Samsung ua32c6900 led tv then I will highly appreciate it.
And as always thanks in advance.

alyoshka · Jun 3, 2014

Have you tried this on page 46?
http

/downloadcenter.samsung.com/content/UM/201007/20100708133121375/BN68-02698Q-00Eng-0607.pdf

Another thing would be a good idea to mention what sort of a wall mount do you have lying on you. make , Model, Size, a link if possible, or a pic would be pretty helpful.

fauzan_22 · Jun 3, 2014

Here is a photo of the wall mount stuff that I got with the tv.

IMG_20140603_183908_zps7907fde8.jpg.html

fauzan_22 · Jun 3, 2014

Maybe the above link isn't working http

/tinyurl.com/oloslp3

alyoshka · Jun 3, 2014

could you put up a few pics of the backside of your telly....
This looks pretty much like the Panasonic's wall mount with just a few pieces extra and some missing....
The 4 Black screws get into the backside (VESA) panel at the back of the telly,
Red grips go into the wall with those shiny steel screws....
The Distance maintainer or support with the transparent circular disc with the blue ring is going to go between one of the black screws and the vesa whole at the lower end of the telly.... so that you can pull it outwards to insert cables etc. and keep the steel U shaped ring against the wall as a support.

fauzan_22 · Jun 3, 2014

Here are pics of the backside http

/tinyurl.com/omfq25k
Thanks for ur help so far I really hope that I ain't missising any parts,one ore thing will I need to do any drilling?

alyoshka · Jun 4, 2014

Ok. Now you do have a small problem, it seems you are missing 2 or three parts......
Here is the link to your Wall Mount, it called WMN1000A
I got the name from here.....
http

/www.samsung.com/au/support/model/UA32C6900VFXXY-techspecs

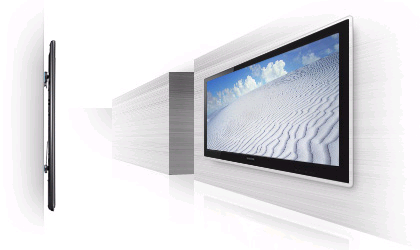

This is how your telly will look once hung up

This is how the Wall Mount is placed and screwed onto the telly's back side.

These are the main parts that you need to have

Out of which I think you have only 3 the two small transparent blue ringed discs and the single steel Samsung disc.

Here's a video of how to....
http

/www.youtube.com/watch?v=Jr4DpIa0ReY

And one more thing you can always go and buy another similar mount if you have the dough, I don't think it ought to be too costly.

28 Pounds in the UK
http

/www.amazon.co.uk/Support-stand-WMN-1000A-8808993442348-SAMSUNG/dp/B004F1KGBS

PS:
YES I do think you will need to drill atleast one or two holes depending on the wall mount.

fauzan_22 · Jun 4, 2014

Thanks a lot will have to search for the remaining parts in the house as 28 pound is quite a bit for me to spend on a wall mount.
Again thank you for all your help.

fauzan_22 · Jun 4, 2014

Hey found some more parts http

/tinyurl.com/kklhtjk
Any idea what to do with em?

alyoshka · Jun 4, 2014

Those grey looking washer like things are standoffs , if you're going to be using a SCART connector with your telly, they'll need to go behind all 4 Vesa mounting holes.
The black ones (strips) are cable ties.... for cable management.
And the half round black plate is actually for the Table Stand option to cover the lower end of the telly when you had the thing on the table.

fauzan_22 · Jun 23, 2015

was able to easily wall mount it using this video http

/www.youtube.com/watch?v=Jr4DpIa0ReY that alyoshka linked to.
